PH1296-2UA-PW (96" | Unheated | 115/1/60)
Mars Air Curtain, PH1296-2UA-PW, 96", Phantom 12 Series, 2 Motor, 1 HP, Unheated, 115v, 1PH, 60Hz, Pearl White
This product is also available in the following colors.
Color: Obsidian Black, Titanium Silver
Phantom Series (PH12) - Unheated

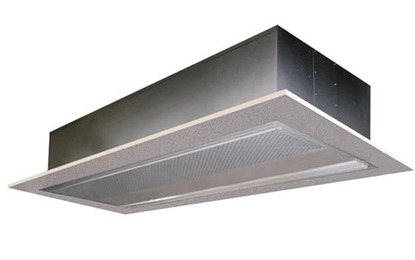

Phantom Series (PH12) The excellent choice for architects and designers wanting to completely conceal the product in a ceiling without sacrificing the amazing benefits of a traditional air curtain. The PH12 Series is designed for insect control up to 10 feet and temperature/environmental separation up to 12 feet. The PH12 Series is only 15 1/2" High X 26" Deep with widths from 36" to 144". Available in Ambient, Electric, Steam and Hot Water configurations. PH12 Series standard color is a powder coated white metal bottom access panel that would be exposed to the ceiling. Available in White, Silver, Black or 304 Stainless Steel. Great for Restaurants & Food Service, Retail & Office, Convenience & Grocery, Healthcare & Hospitals, Pest Control, Transportation & Terminals or any other facility needed to conceal the unit.
Phantom Recessed Series 12 Brochure
Phantom Recessed Series 12 Unheated Spec Sheet
Phantom Recessed Series 10 Instructions Operations Manual (IOM)
If you need more information about an accessory or replacement part, give us a call at (866) 402-1642.
